Details

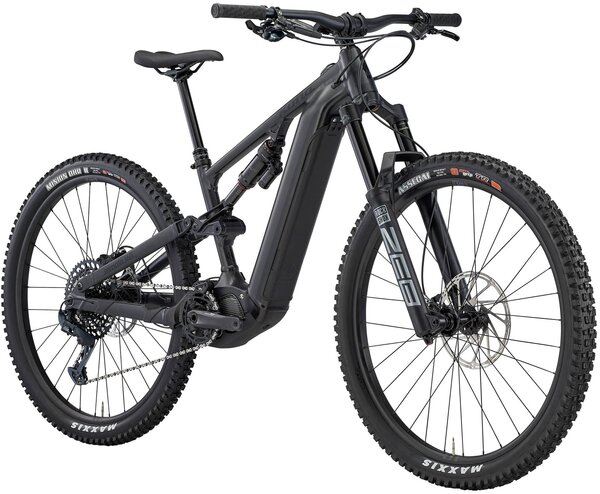

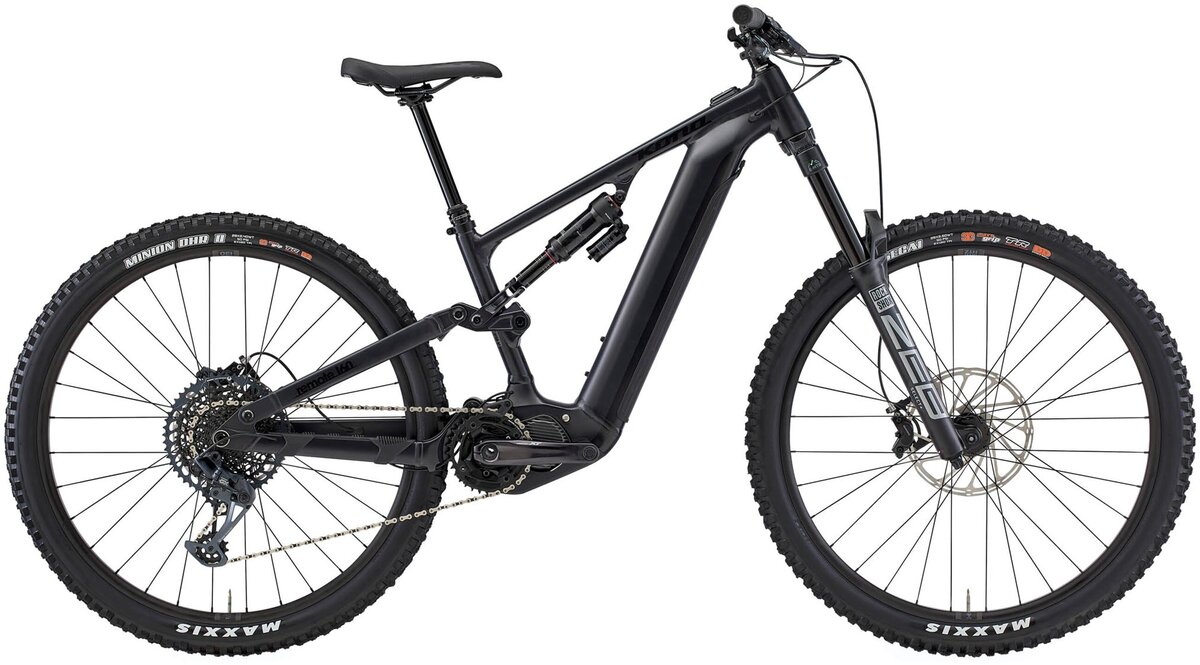

“You know what would be really cool? If you took the Process 153 and turned it into an e-bike.” Done! We combined the awesome off-road capabilities of the legendary Process 153 with the renowned durability and user-friendliness of Shimano’s EP8 motor, packed a beefy 612Wh battery in the downtube, and created a ride-every-trail, go anywhere, do everything, mountain devouring machine. This is the Remote 160 DL. 160mm of terrain flattening travel at either end, suspension kinematics tuned to rail everywhere from mellow trails to jump lines with more speed than ever before. It’s as familiar and easy to get along with as the 153, is right at home on any kind of dirt from green trails with the kids to big days full of black diamonds, and the addition of a little voltage makes it ready to chow down on singletrack for as long as your legs can turn the pedals.
Specs
Motor | Shimano EP800 |
---|---|
Battery | Darfon 612Wh |
Display | Shimano SC-EM800 Display |
Max Assisted Speed | 20mph |
Charger | Darfon Smart 4A |
Frame | Kona 6061 Aluminum Butted 160mm Travel |
Fork | RockShox Zeb Select + Charger RC 2.1 DebonAir 160mm Tapered 110 Spacing |
Headset | FSA No.57E |
Rear Shock | RockShox Super Deluxe Select |
Axles | Front: 110 x 15mm thru-axle | Rear: 148 x 12mm thru-axle |
Rims/Wheels | WTB HTZ i30 TCS 2.0 |
Hubs | Formula |
Spokes | Stainless Black 14g |
Tires | Front: Maxxis Assegai DD TR 3C 29x2.5" WT | Rear: Maxxis Minion DHR II DD TR 3C 29x2.4" WT |
Crankset | Shimano Deore XT |
Chainrings | 34t X-Sync Eagle |
Chain | SRAM GX-Eagle |
Rear Derailleur | SRAM GX |
Cassette/Rear Cogs | SRAM GX-Eagle 10-52t 12spd |
Shifters | SRAM GX Single Click |
Handlebars | Kona XC/BC 35 |
Tape/Grips | Kona Key Grip |
Stem | Kona XC/BC 35 |
Brake Levers | SRAM Code R |
Brakes | SRAM Code R |
Pedals | Sold separately |
Saddle | WTB Volt |
Seat Post | TranzX Dropper +RAD Internal 31.6mm |
* Subject to change without notice.
Videos
Remote Viewing: The All New Remote X & 160 DL
Part Numbers
Option | UPC | MPN | Store SKU |
---|---|---|---|
Black / Medium | 841073148929 | B22RE160D03 | 210000001827 |
